Wireless CarPlay & Android Auto Retrofit Kit for Audi A1, Q3, A6 C7, A7 (2012–2018 RMC System, 6.5”

Upgrade your original Audi infotainment system with Wireless Apple CarPlay and Android Auto while keeping the factory screen, MMI controls and original vehicle functions.

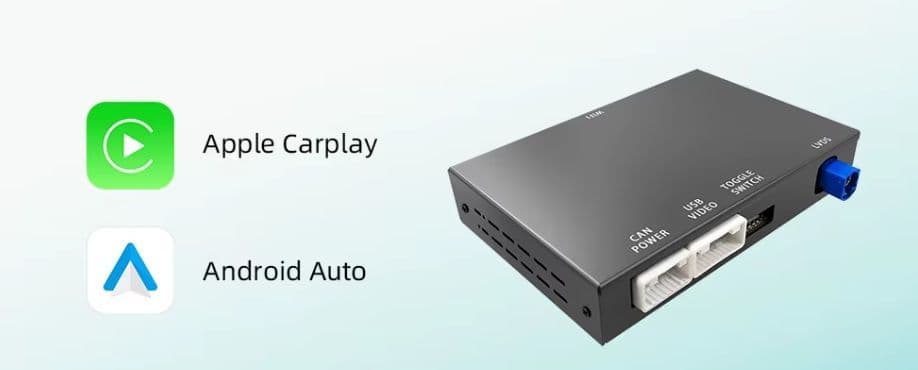

This CarPlay / Android Auto decoder box is designed specifically for compatible Audi RMC (Radio Media Center) systems. It works alongside the original Audi infotainment system — no replacement screen or aftermarket head unit is required.

📌 Key Features

✔ Wireless Apple CarPlay
✔ Wired Apple CarPlay
✔ Wireless Android Auto
✔ Wired Android Auto
✔ Apple AirPlay / screen mirroring
✔ Android screen mirroring on compatible phones
✔ USB music, photo and video playback
✔ Original Audi screen retained
✔ Original MMI rotary controller retained
✔ Steering wheel control support
✔ Siri & Google Assistant voice control
✔ Built-in DSP with adjustable EQ
✔ Rear-view camera input
✔ Front-view camera input
✔ Dynamic parking guidelines on supported installations
✔ 2.4GHz / 5.8GHz Wi-Fi
✔ Bluetooth connectivity
✔ Non-destructive retrofit installation

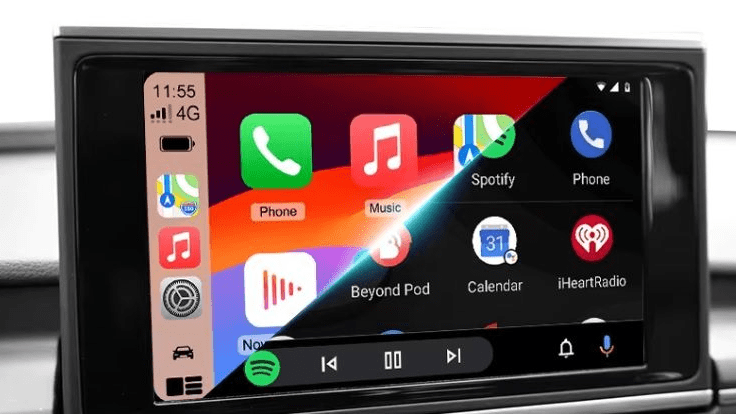

📱 Apple CarPlay & Android Auto

Use modern smartphone apps directly through your original Audi display.

Supported functions include:

✔ Apple Maps
✔ Google Maps
✔ Waze
✔ Spotify
✔ Apple Music
✔ YouTube Music
✔ Phone calls
✔ Messages
✔ Siri
✔ Google Assistant
✔ Live traffic navigation

The original Audi interface remains available, and you can switch between factory RMC and the CarPlay / Android Auto interface whenever required.

🔧 System Compatibility – Audi RMC Only

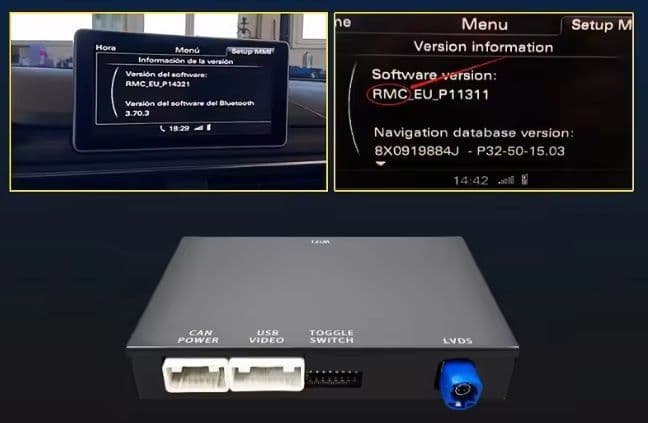

This product is designed for Audi systems where the software version begins with:

RMC_EU

Examples may look like:

RMC_EU_Pxxxx
RMC_EU_Kxxxx

The RMC_ software prefix is the most reliable way to identify this Audi infotainment system.

⚠️ Vehicle model and year alone do not confirm compatibility.

🚫 Not Compatible With

❌ MMI 2G
❌ MMI 3G Basic / BNav
❌ MMI 3G High / HNav
❌ MMI 3G Plus / HN+ / HN+R
❌ MIB1 / MSTD / MHIG
❌ MIB2 / MHI2 / MHS2
❌ MH2p
❌ MIB3

If your software does not begin with RMC, please contact us before ordering.

🚗 Compatible Audi Models

RMC systems can be found in selected:

Audi A1 / S1 – approximately 2011–2018
Audi Q3 / RS Q3 – approximately 2012–2018
Audi A6 / S6 / RS6 C7 – approximately 2011–2018
Audi A7 / S7 C7 – approximately 2010–2018

Audi officially lists RMC across these model families, although individual vehicles may have a different MMI system depending on specification.

For A6/A7, RMC is commonly paired with the 6.5-inch factory display.

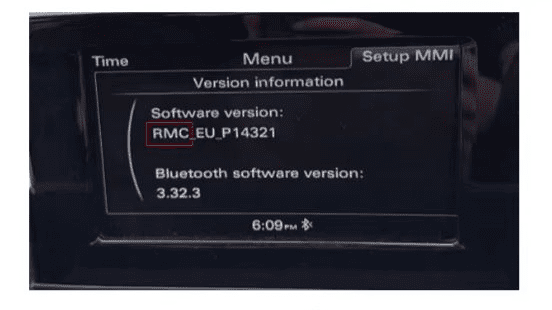

🔎 How to Check Your Audi System

Go to:

Menu → Setup MMI → Version Information

Look at the software version.

Compatible systems should show something beginning with:

RMC_EU

📸 If you are unsure, send us a clear photo of:

✔ Version Information screen
✔ Centre console / MMI controls
✔ Original Audi display

We can confirm compatibility before dispatch.

🎛️ Original Audi Controls Retained

Depending on your vehicle configuration, CarPlay and Android Auto can be controlled using:

✔ Original MMI rotary controller
✔ Factory MMI buttons
✔ Steering wheel controls
✔ Siri / Google Assistant voice commands

The original Audi RMC menus and vehicle functions remain available.

🔊 Audio Connection – Important

CarPlay and Android Auto audio works through the original Audi sound system.

Depending on your vehicle, the interface may use:

AUX input
or
Audi Music Interface (AMI) / AUX connection

⚠️ Some vehicles require an AMI-to-AUX adapter or AUX activation for CarPlay / Android Auto sound. This is a known requirement on RMC retrofit interfaces.

If you are unsure whether your car has the required audio connection, please contact us before ordering.

🎤 Microphone & Voice Control

Siri and Google Assistant can be used for:

✔ Hands-free calls
✔ Messages
✔ Navigation commands
✔ Music control

On compatible vehicles with the correct original Bluetooth configuration, the factory microphone can be retained.

Some installations may require an external microphone, depending on the original vehicle specification.

📷 Camera Support

The interface can also add additional parking camera functionality.

✔ Rear-view camera input
✔ Front-view camera input
✔ Automatic reversing camera switching
✔ Dynamic parking guidelines on supported installations
✔ Factory parking sensor overlay retained where supported
✔ Selected interfaces can support additional 360° camera configurations

⚠️ Camera functionality depends on the exact decoder box version and the vehicle's original equipment.

📲 Screen Mirroring & USB Media

Additional multimedia functions include:

✔ Apple AirPlay screen mirroring
✔ Android screen mirroring on compatible phones
✔ USB music playback
✔ USB photo playback
✔ USB video playback up to supported interface resolution

Phone screen mirroring availability can vary according to smartphone model, operating system and app restrictions.

🛠️ Installation

The decoder box integrates with the existing Audi RMC system.

✔ Factory screen retained
✔ Factory RMC unit retained
✔ Plug & Play wiring connections
✔ No permanent modification to the dashboard
✔ No replacement radio required

⚠️ Installation requirements differ between Audi models.

Some A1 / Q3 RMC installations require access to the original display/radio and installation of an interface board, while A6/A7 configurations use a different RMC interface arrangement. Professional installation is recommended if you are not familiar with Audi infotainment systems.

The correct RMC interface / wiring configuration must be selected for your vehicle.

💡 Why Upgrade Your Audi RMC?

✔ Add modern Apple CarPlay and Android Auto
✔ Keep the original Audi dashboard and display
✔ Use Google Maps, Waze and Apple Maps with live traffic
✔ Stream Spotify, Apple Music and other services
✔ Make hands-free calls and use voice commands
✔ Add front or rear parking cameras
✔ Wireless smartphone connection
✔ No need to replace the factory infotainment system

📦 What You Receive

✔ Audi RMC CarPlay / Android Auto decoder box
✔ Correct Plug & Play wiring harness
✔ USB connection
✔ Required video / audio cables
✔ Wi-Fi / Bluetooth antenna where applicable
✔ Installation instructions

Exact wiring and interface configuration depends on your Audi model.

❗ Important Information

• This is a hardware CarPlay / Android Auto retrofit interface
• Designed for compatible Audi RMC systems only
• Compatible software normally begins with RMC_EU
• Works with the original Audi screen and controls
• AUX / AMI connection may be required for audio
• Factory microphone support depends on original Bluetooth configuration
• A1 / Q3 and A6 / A7 may use different interface hardware / installation methods
• Vehicle model and year alone do not guarantee compatibility
• Please check your software version before ordering

📩 Not Sure If Your Audi Has RMC?

Send us a clear photo of your:

✔ Version Information screen
✔ Centre console / MMI controller
✔ Original display

We can confirm whether your Audi has the RMC system and make sure you receive the correct Wireless CarPlay & Android Auto retrofit interface.
