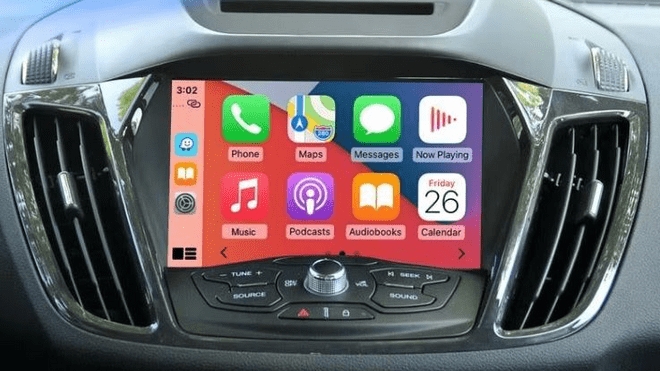

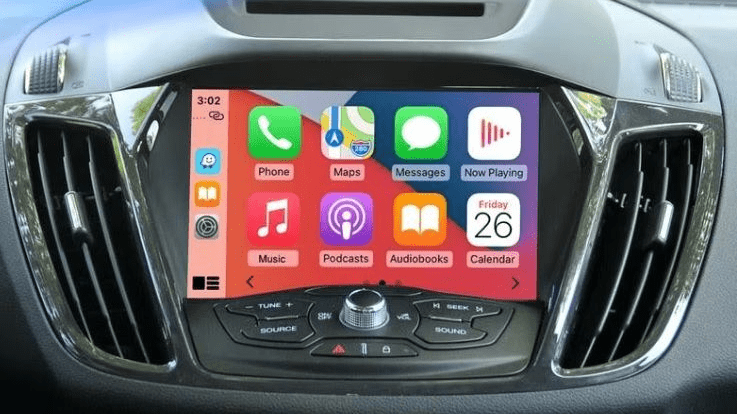

Wireless Apple CarPlay & Android Auto Retrofit for Ford SYNC 2 with 8-Inch Display

Add Wireless Apple CarPlay and Android Auto to your original Ford SYNC 2 8-inch touchscreen without replacing the factory display or infotainment system.

This is a hardware CarPlay / Android Auto decoder box installed behind the original Ford system. Your existing SYNC 2, radio, climate display, steering wheel controls and factory functions remain available, while CarPlay and Android Auto are added as an additional interface.

No replacement screen or aftermarket head unit is required.

📌 Key Features

✔ Wireless Apple CarPlay
✔ Wireless Android Auto
✔ Apple AirPlay screen mirroring
✔ Android phone screen mirroring
✔ Uses the original Ford 8-inch touchscreen
✔ Factory steering wheel controls retained
✔ Siri & Google Assistant voice control
✔ USB music and video playback
✔ Adjustable audio EQ
✔ Original SYNC 2 functions remain accessible
✔ Plug & Play wiring harness
✔ No cutting of factory wiring
✔ Switch between original SYNC 2 and smartphone interface

📱 Apple CarPlay & Android Auto

Use compatible smartphone apps directly through the original Ford display, including:

Apple Maps, Google Maps, Waze, Spotify, Apple Music, YouTube Music, phone calls, messages and other supported CarPlay / Android Auto apps.

Voice functions are available through:

Siri – Apple CarPlay
Google Assistant – Android Auto

Live traffic and online navigation information is provided through your connected smartphone.

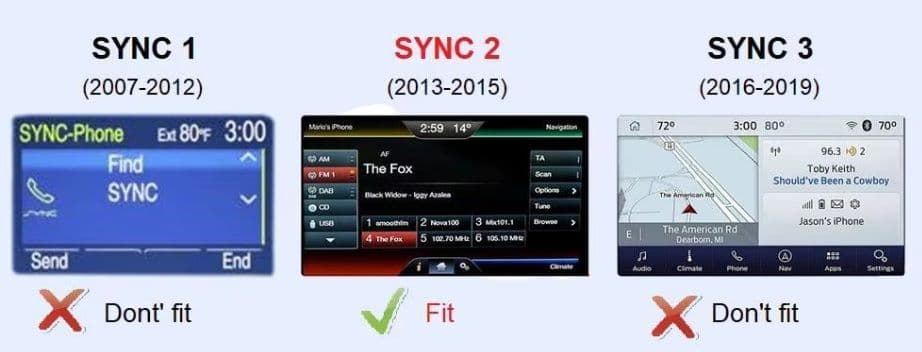

🔧 System Compatibility – Important

This product is designed specifically for:

✅ Ford SYNC 2
✅ Original 8-inch touchscreen
✅ Compatible factory Ford infotainment system

It can work with vehicles fitted with factory navigation or compatible non-navigation SYNC 2 configurations.

Not Compatible With

❌ Ford SYNC 1
❌ Ford SYNC 3
❌ Small non-touch Ford displays
❌ Aftermarket head units
❌ Vehicles without the compatible factory SYNC 2 system

⚠️ Vehicle model and year alone do not confirm compatibility.

The most important requirement is that the vehicle has the correct SYNC 2 system with the original 8-inch touchscreen.

🚗 Compatible Ford Models

Suitable for selected SYNC 2-equipped versions of:

Ford F-150 – 2013–2014
Ford Explorer – 2011–2016
Ford Focus – 2012–2015
Ford Escape – 2013–2015
Ford Fiesta – 2015–2016
Ford C-Max – 2013–2015
Ford Edge – 2011–2015
Ford Mustang – 2015–2016
Ford Fusion – 2012–2015
Ford Expedition – 2015–2016
Ford Super Duty – 2012–2016
Ford Taurus – 2013–2015
Ford Flex – 2013–2015

Production dates and infotainment specifications can vary, so the SYNC system must always be checked before ordering.

🖥️ Original Ford System Retained

The decoder does not replace your SYNC 2 system.

You can continue using the original:

✔ Ford radio
✔ Factory navigation, if fitted
✔ Climate-control display
✔ Bluetooth functions
✔ Vehicle settings

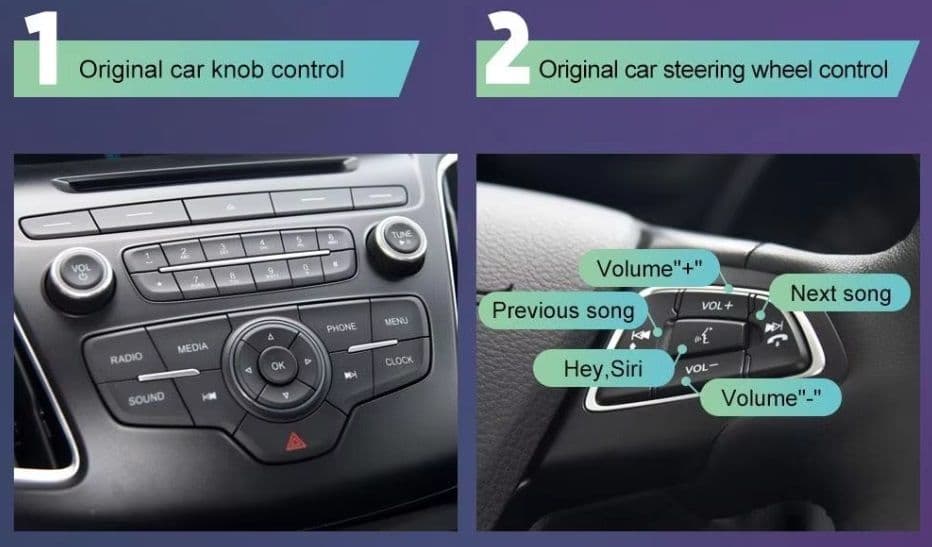

✔ Steering wheel controls
✔ Factory reversing camera
✔ Original SYNC menus

You can switch between SYNC 2 and the CarPlay / Android Auto interface using the original vehicle controls.

📷 Camera & Parking Support

The interface supports compatible factory and aftermarket camera functions, including:

✔ Original factory reversing camera retained
✔ Compatible factory parking sensors / parking radar retained
✔ Aftermarket front-view camera support
✔ Aftermarket rear-view camera support
✔ DVR / CVBS video input
✔ CVBS / AHD 720P camera support

Exact camera functionality depends on the original vehicle specification and module configuration.

🎵 Audio & Media

The interface works through the vehicle's existing audio system and provides:

✔ Wireless smartphone audio
✔ CarPlay / Android Auto music playback
✔ USB music playback
✔ USB video playback
✔ Adjustable audio EQ

Your original Ford audio and SYNC functions remain available.

🛠️ Installation

The module installs behind the original SYNC 2 system using the supplied Plug & Play harness.

Basic installation:

1. Remove the required dashboard trim.
2. Access the original SYNC 2 screen / infotainment connections.
3. Connect the supplied Plug & Play harness between the original connectors and decoder box.
4. Connect the required module cables.
5. Position the decoder securely behind the dashboard.
6. Reassemble the dashboard.
7. Pair your phone with the new CarPlay / Android Auto interface.

No factory wires need to be cut.

Professional installation is recommended if you are not comfortable removing Ford dashboard trim or infotainment components.

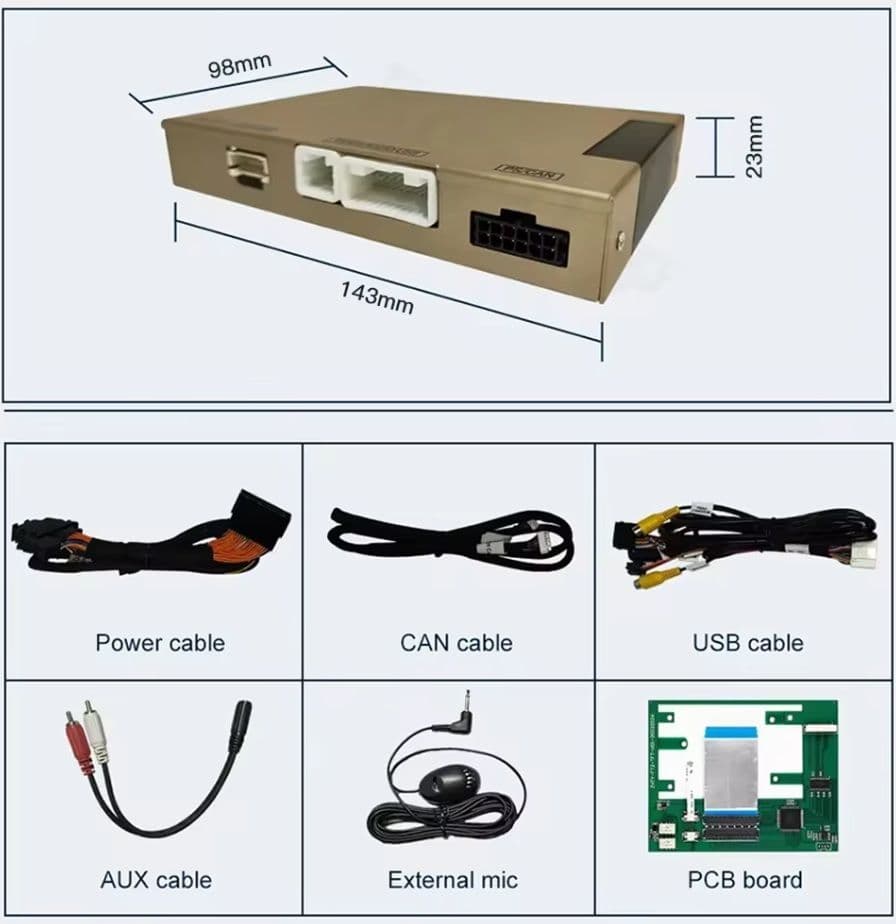

📦 What You Receive

✔ Wireless CarPlay / Android Auto decoder module
✔ Plug & Play wiring harness
✔ Required interface cables supplied with the kit

❗ Important Information

• This is a hardware retrofit decoder box
• It is not a SYNC software or navigation map update
• Designed for Ford SYNC 2 with original 8-inch touchscreen
• Wireless CarPlay and Wireless Android Auto supported
• Original Ford system remains available after installation
• No factory wire cutting required
• SYNC 1 and SYNC 3 require different products
• Compatibility depends on the installed infotainment system, not just model/year

📩 Not Sure If Your Ford Has SYNC 2?

Before ordering, send us:

✔ Photo of the infotainment screen
✔ Photo of the centre console
✔ Vehicle model and year

We can confirm whether your vehicle has the correct SYNC 2 8-inch touchscreen system.
